Construction Conditions
Measure temperature and humidity with a thermo-hygrometer. The ideal temperature for both indoor air and floor surface is 15°C. Construction is not permitted when the temperature is below 5°C or above 30°C. The relative air humidity shall be kept between 20% and 75%.
01
Test the moisture content of the substrate with a moisture meter. The substrate moisture content must be less than 3%.
02
The compressive strength of the substrate shall not be lower than C20 concrete. If not, apply suitable self-levelling compound to reinforce the base.
The surface hardness of the substrate, tested by a hardness tester, shall be no less than 1.2 MPa.
03
Check surface flatness: the height deviation over a 2-meter straightedge shall be less than 2 mm. Rectify uneven surfaces with qualified self-levelling compound prior to flooring installation.
04

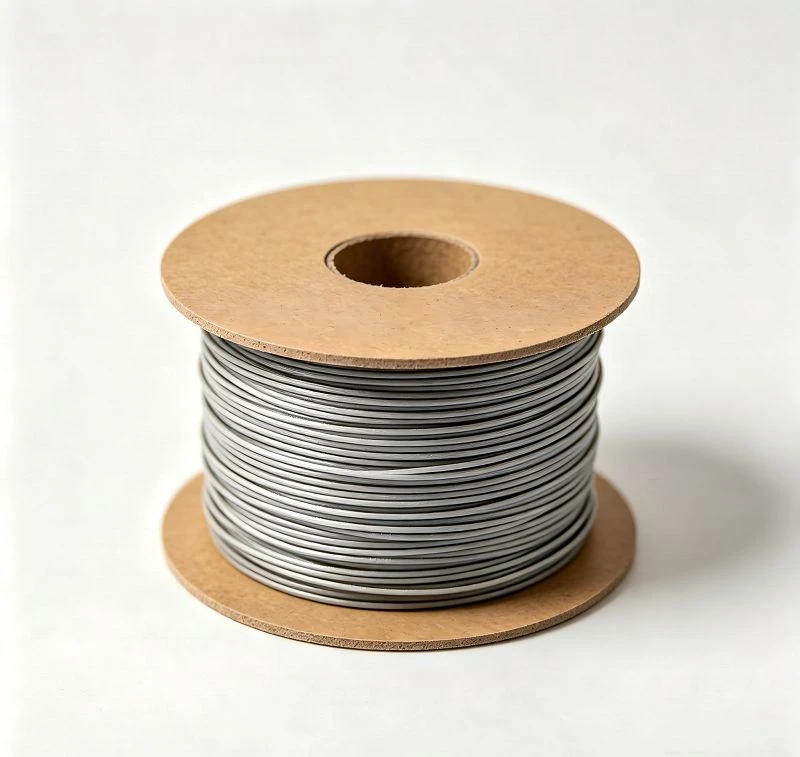

Homogeneous PVC Flooring Welding Wire | Seamless Welding Accessory
This welding wire is a professional consumable developed specifically for homogeneous PVC flooring. Made with the same PVC formula as the flooring, its composition is highly compatible, ensuring a truly seamless joint after heat fusion welding.
Seamless Joint, One-Piece Molding
Made of the same material as the flooring, the seams are completely fused after heat fusion welding, creating a seamless, dustproof, and waterproof overall effect. It eliminates the possibility of dirt and grime accumulating in gaps, meeting the high hygiene standards required in hospitals, laboratories, schools, cleanrooms, and other similar settings.
Stable and Durable, Not Prone to Cracks
Compatible with professional hot air gun welding processes, the weld points will not crack or peel off. It is resistant to aging and weathering, and will not yellow or shrink over long-term use, ensuring the overall integrity and durability of the floor.
Multiple Specifications/Colors Available
Offers mainstream specifications such as 2.0mm, 2.5mm, and 3.0mm diameter, and supports customization to match the flooring color scheme (including basic colors such as white, transparent, and gray). After welding, the color scheme is highly consistent with the flooring, without affecting the overall aesthetics.
Standard Roll Packaging
Uses environmentally friendly paper tubes for complete roll packaging, facilitating storage and transportation, reducing waste, and suitable for batch construction needs. Custom lengths can also be provided according to order requirements.
* Either manual welding guns or automatic welding equipment can be used for joint welding.
* Set the welding gun temperature to approximately 350°C.
* Push the welding rod evenly into the pre-cut groove at a proper welding speed to ensure full melting of the rod.
* While the welding rod is semi-cooled, trim off the excess protruding part above the floor surface with a rod trimmer or crescent cutter.
* After the welding rod cools completely, remove the remaining protrusions using a rod trimmer or crescent cutter.
Xinkailin PVC Flooring Adhesive is compatible with all types of commercial, medical, educational and residential PVC flooring installation applications. Formulated with a water-based eco-friendly formula, it is zero-formaldehyde and certified by authoritative environmental testing, making it safe for high-sensitivity spaces such as children’s play areas and hospital wards.
Offering high bond strength and excellent elasticity, it adheres firmly to flat substrates including concrete and self-leveling compounds. It effectively resists temperature and humidity changes, eliminating common issues such as floor bubbling, cracking, and delamination.

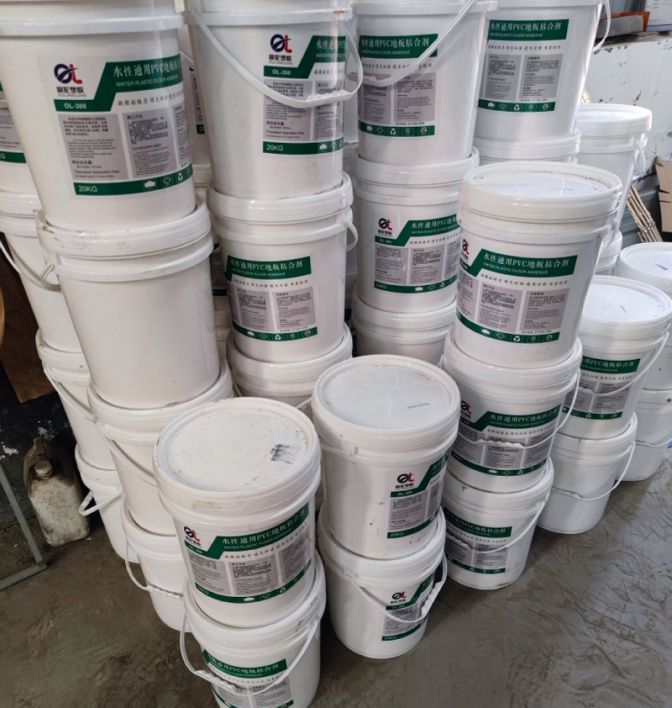

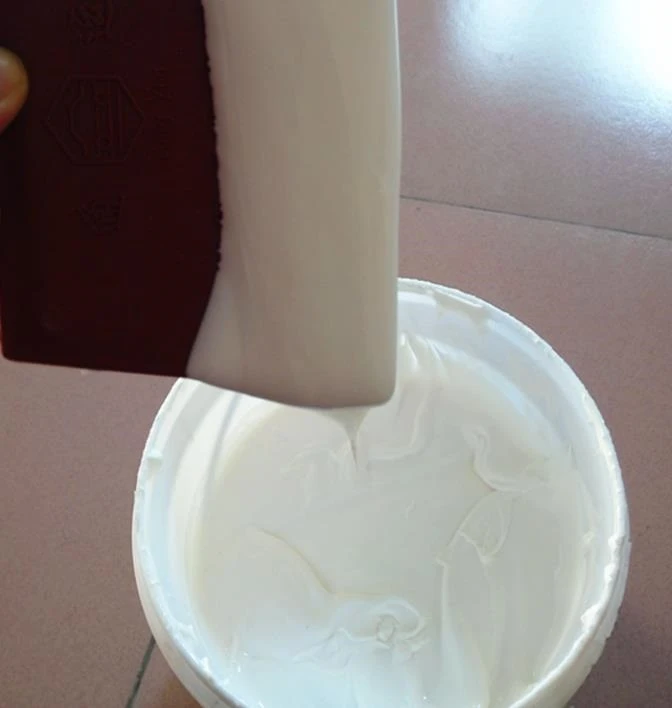

PVC Flooring Adhesive
Xinkailin PVC Flooring Adhesive is an eco-friendly special adhesive developed exclusively for PVC sheet and tile flooring. Manufactured by Linyi Xinkailin Environmental Materials Co., Ltd., it is suitable for the installation of PVC flooring in commercial, medical, educational and residential settings.
Formulated with water-based eco-friendly resin, it contains zero formaldehyde and has passed authoritative environmental tests. It is safe for use in spaces with strict environmental requirements such as children’s activity areas and hospital wards.
Boasting high bonding strength and excellent elasticity, it adheres firmly to flat substrates including cement floors and self-levelling screeds. It effectively resists temperature and humidity fluctuations, preventing flooring bulging, cracking and delamination.
Directions for Use
* Select the suitable adhesive and trowel for the flooring.
* When installing sheet flooring, fold back one end of the sheet. Clean the floor base and the back of the sheet thoroughly, then apply adhesive onto the floor.
* For tile flooring installation, lift the tiles from the center outwards. Likewise, clean the floor and tile surfaces before applying adhesive and laying the tiles.
* Construction specifications differ for various adhesives. Please follow the official product instructions during installation.
Besides our main products of PVC flooring and welding accessories, we also offer one-stop procurement service for a full range of supporting materials, such as anti-static adhesive, copper foil, primer, underlayment, edge trims and more. We supply complete ranges with reliable quality and flexible matching according to project requirements. It saves your trouble of sourcing from multiple suppliers and delivers a total solution for flooring projects.
As one of the most professional supporting consumables manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy premium supporting consumables for sale here from our factory. Also, custom service is available.
