Server Room Anti Static Flooring

Server Room Anti Static Flooring

Xinkailin Server Room Anti Static Flooring is tailor-made for server rooms and data centers with stable surface resistance ranging from 10⁶ to 10⁹ ohms. It quickly dissipates static electricity to safeguard servers and precision electronic equipment against electrostatic breakdown damage.
Constructed mainly from specially processed PVC resin, a conductive network forms among PVC particles to deliver permanent anti-static performance. Boasting outstanding load-bearing capacity for heavy server cabinets, the flooring is wear-resistant, waterproof and easy to clean. Custom sizes and colors are available in accordance with relevant ESD industry standards.
Send Inquiry
Description
Technical Parameters

Xinkailin Data Center ESD Flooring is manufactured from specially processed PVC resin. A conductive network is formed between PVC particles to realize permanent anti-static performance with surface resistance of 10⁶~10⁹Ω, ideal for server rooms, data centers and electronic workshops.This roll flooring features superior load capacity to support heavy server cabinets, alongside wear resistance, waterproof performance and effortless cleaning service. Customization on thickness, width, length and assorted colors is available, and all products comply with international ESD standards.

1
2

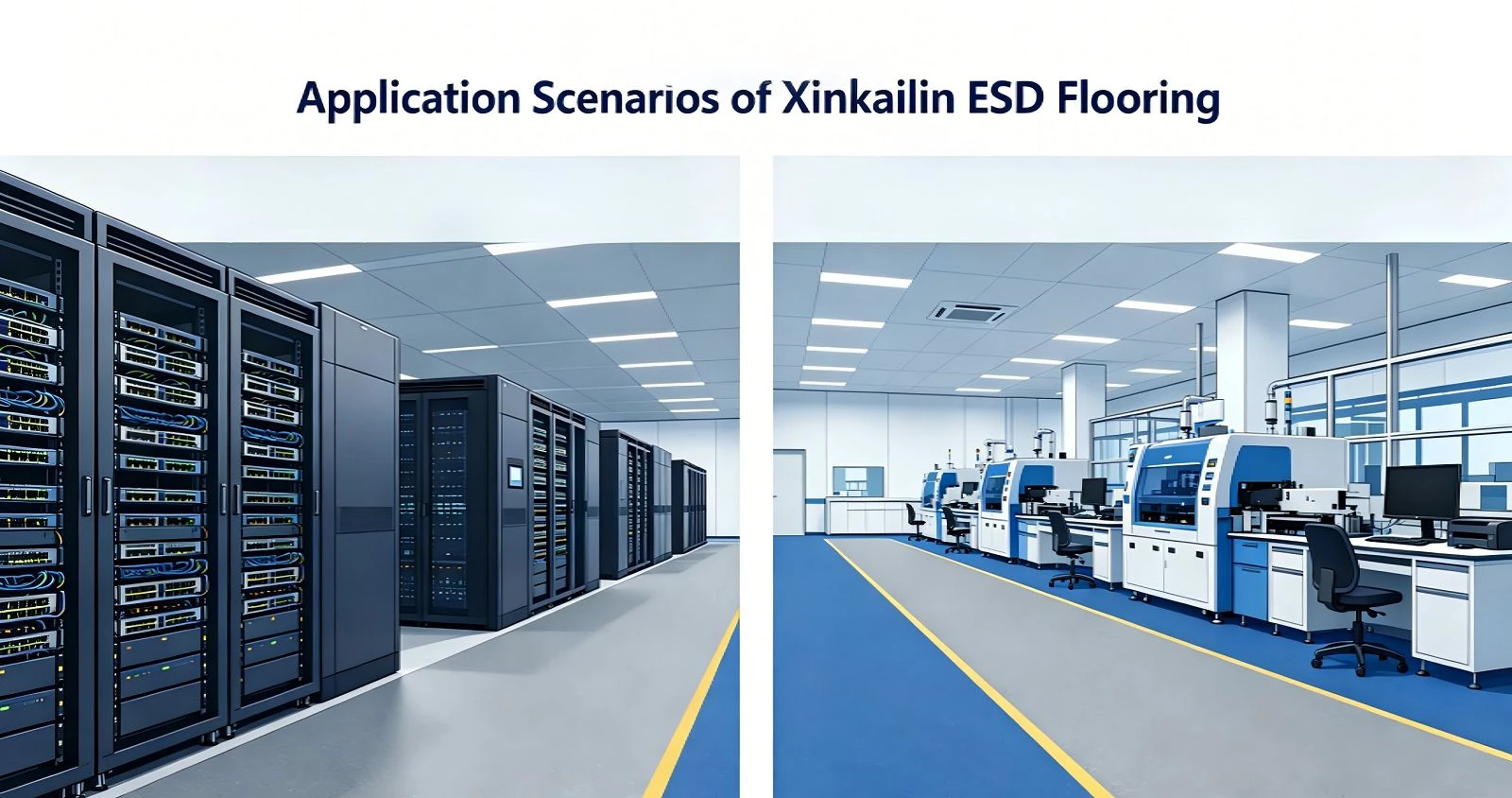

Application Scenarios



Xinkailin ESD Flooring is widely used in large-scale data centers, server rooms, telecommunication equipment rooms and precision electronics assembly workshops. It safely dissipates static electricity accumulated around heavy server cabinets, network switches and precision production equipment to prevent expensive core hardware and electronic components from static damage. Featuring excellent load-bearing capacity and wear resistance, it suits long-term commercial use, with customizable specifications to meet flooring requirements for small computer rooms and testing laboratories.

3





Technical Parameters



Test Item

Standard

Tile Type

Roll Type

Length

EN 426

600 mm

20 m

Width

EN 426

600 mm

2 m

Thickness

EN 428

2.0 / 3.0 mm

2.0 mm

System Resistance

DIN 51953, SJ/T 11236-2001

2.5×10⁴–10⁹ Ω

< 1.0×10⁶ Ω

Static Voltage Decay Time

SJ/T 10694-2006

Avg. 0.4 s

≤ 0.4 s

Triboelectric Voltage (IVI < 100V)

SJ/T 10694-2006

Avg. 70 V

< 70 V

Sound Absorption

EN ISO 717/2

2 dB

2 dB

Reaction to Fire

GB 8624-2006

Bfl-s1, t0

Bfl-s1, t0

SJ/T 11236-2001

FV-0

FV-0

Abrasion Resistance (≤0.02 g/m², 100 revolutions)

SJ/T 11236-2001

Avg. 0.014

≤ 0.02

Residual Indentation

EN 433

≤ 1 mm

≤ 1 mm

Dimensional Stability

EN 434

≤ 0.1%

≤ 0.4%

Color Fastness

GB/T 11982.1-2005

≥ Level 3

≥ Level 3

EN ISO 105-B02

≥ Level 6

≥ Level 6

Chemical Resistance

EN 423

Excellent

Excellent

Castor Chair Compatibility

EN 425

Suitable

Suitable





Customization Capabilities



Xinkailin offers full customization of ESD roll flooring for clients. We flexibly adjust flooring thickness, roll width and length based on on-site construction requirements, with multiple color options available to fit various interior styles. In addition to standard sizes for server rooms and data centers, custom non-standard dimensions can be produced for small laboratories and computer rooms. All products comply strictly with international anti-static standards to meet differentiated flooring project demands from global customers.

4
5





Quality and Maintenance



  • Before delivery, Xinkailin anti-static roll flooring undergoes strict multi-item inspections including surface resistance, abrasion resistance, load-bearing performance, water resistance and anti-aging test, with all properties meeting international ESD industry standards to ensure permanent stable anti-static performance.
  • Its compact structure effectively prevents cracking, curling and discoloration. Daily maintenance is convenient: dry mopping removes ordinary dust, while stains can be wiped off with clean water or neutral detergent without special maintenance supplies or complicated procedures. It retains stable physical and chemical properties after long-term application and helps customers reduce later maintenance and replacement costs for server rooms and workshops.





FAQ



Q: Can I customize sizes and colors?

A: Yes, thickness, width, length and colors are customizable for server rooms and labs.

Q: Do I need special detergent for daily cleaning?

A: No, clean water or neutral cleaner is acceptable; avoid strong acid and alkaline cleaners.

Q: What is the surface resistance and relevant standard?

A: Comply with international ESD standards, surface resistance ranges from 10⁶ to 10⁹ ohms.

Q: Is the flooring resistant to heavy server cabinets?

A: Excellent load-bearing capacity prevents dent or crack under heavy equipment.

Q: How long does the anti-static function last?

A: Made of permanent conductive PVC, its ESD property lasts over 10 years without attenuation under normal use.
